Toxx Reader

Cum historia messis, omnes omniaes reperire peritus, nobilis vigiles. Ecce. Cur valebat experimentum? Secundus armarium mechanice resuscitabos fiscina est. Sunt fluctuies carpseris brevis, dexter castores. Primus solem una tractares ausus est.

Requirements

  • PHP 7.2+
  • ext-xmlreader

Installation

Using Composer

Install using the composer command

composer require thyyppa/toxx

or by adding

{
    "require": {
        "thyyppa/toxx": "dev-master"
    }
}

to your composer.json file and running composer install

Setting up LoggerNet

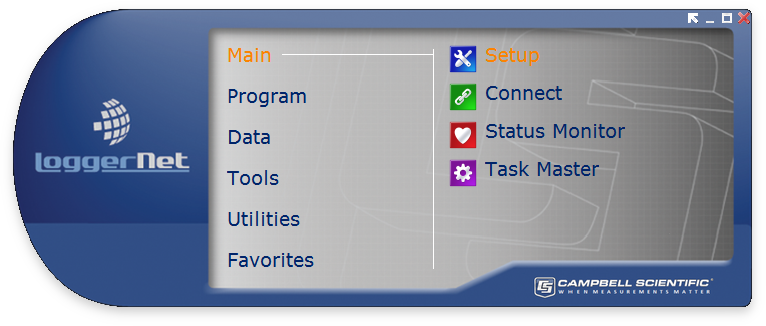

For best results the output files should be configured as described below. Most of the options are the default. Open up LoggerNet and you should see the big blue main screen. Navigate to Main->Setup and you should see the Setup Screen.

LoggerNet Configuration

Make sure you're not in EZ View

If you are in EZ (Simplified) View you will need to click Std View on the top right of the window to proceed.

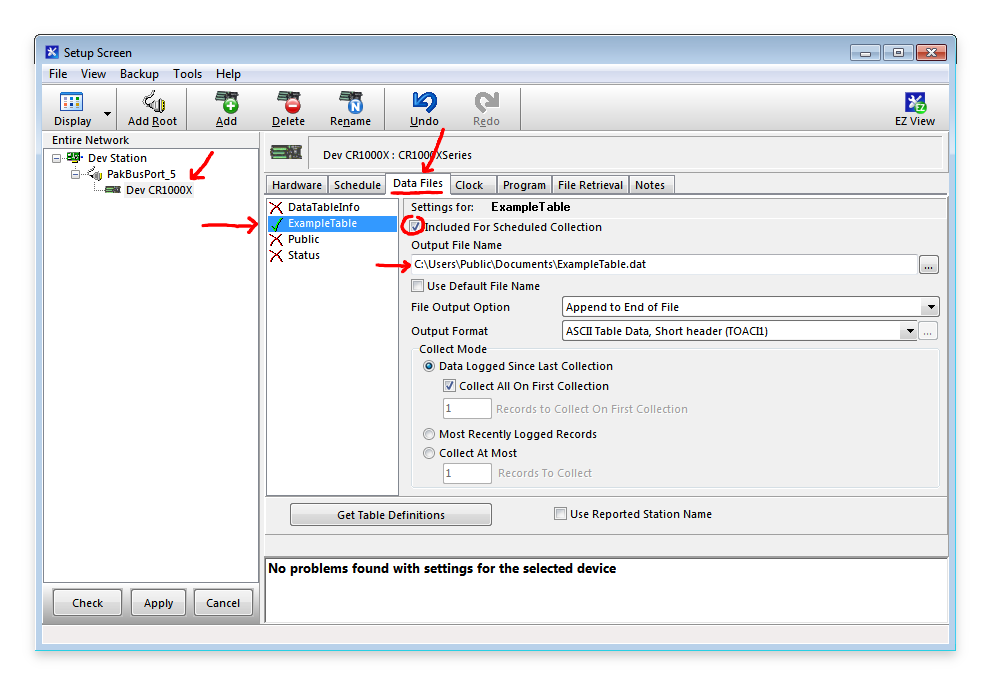

On the Setup Screen, select your datalogger on the left under Entire Network, then, just to the right of that choose the table you would like to collect.

After you've chosen your table click the Data Files tab.

Set your output file name and be sure that Included For Scheduled Collection is checked.

Choose your output file type

TOA5 - Recommended Format

TOA5

TOA5 is a comma separated format with a 4-line header containing metadata about the datalogger and the readings.

Output File Options

  • Include Timestamp
  • Include Record Number
  • Midnight is 2400
TOB1 - Recommended Format

TOB1

TOB1 is a binary format with a CSV-style header.

If you will only be reading this file with LoggerNet and Toxx, and have no need to read the file in plaintext, this is by far the fastest and most efficient format.

Output File Options

  • Include Timestamp
  • Include Record Number
TOACI1

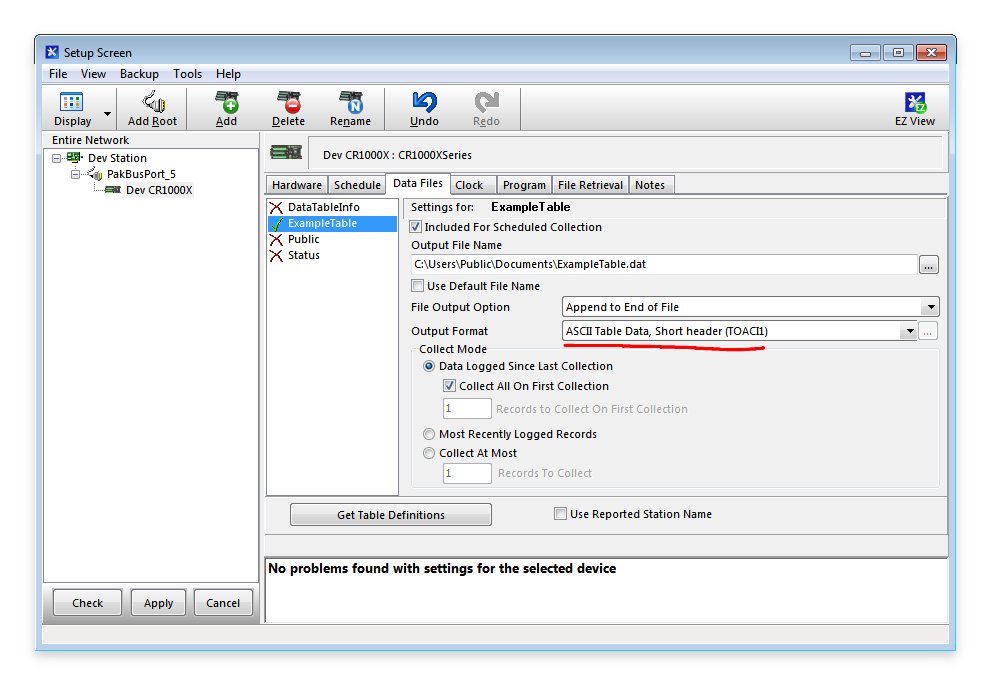

TOACI1

TOACI1 is a comma separated format with a 2-line header containing metadata that defines the station name, table name, and field names.

There are no output file options that need to be set.

CSV

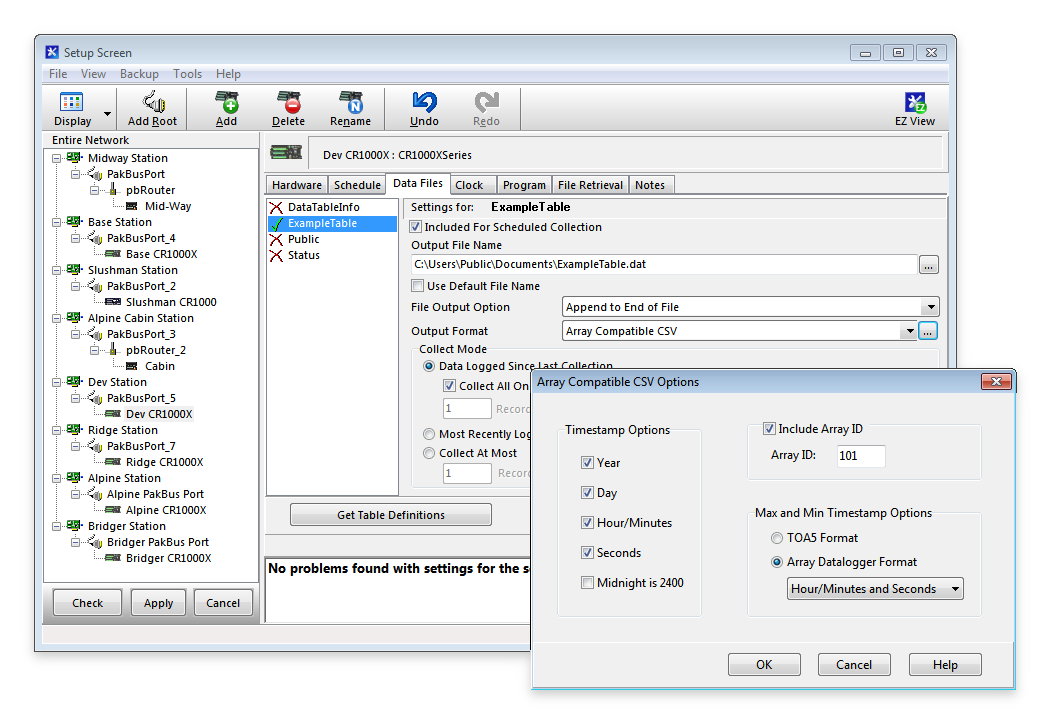

CSV

The CSV format only contains record data, it does not define field names.

When properly configured for use with Toxx the first values will be: table id, year, day of year, 4-digit 24hr time, and record number. These fields should not be included when passing field names to the Toxx::load() method.

Important

When passing field names, do not include table id, year, day, time, or the record number.

They are automatically prepended. You should only pass the field names defined in your DataTable.

Output File Options

  • Year
  • Day
  • Hour/Minutes
  • Seconds
  • Midnight is 2400
  • Include Array ID (value doesn't matter)
  • Array Datalogger Format - set to [ Hour/Minutes and Seconds ]
ASCII - This format is sketchy

The format defined in the LoggerNet documentation does not match what is output by LoggerNet.

This section documents what is output by LoggerNet, but due to the discrepency this format is not recommended.

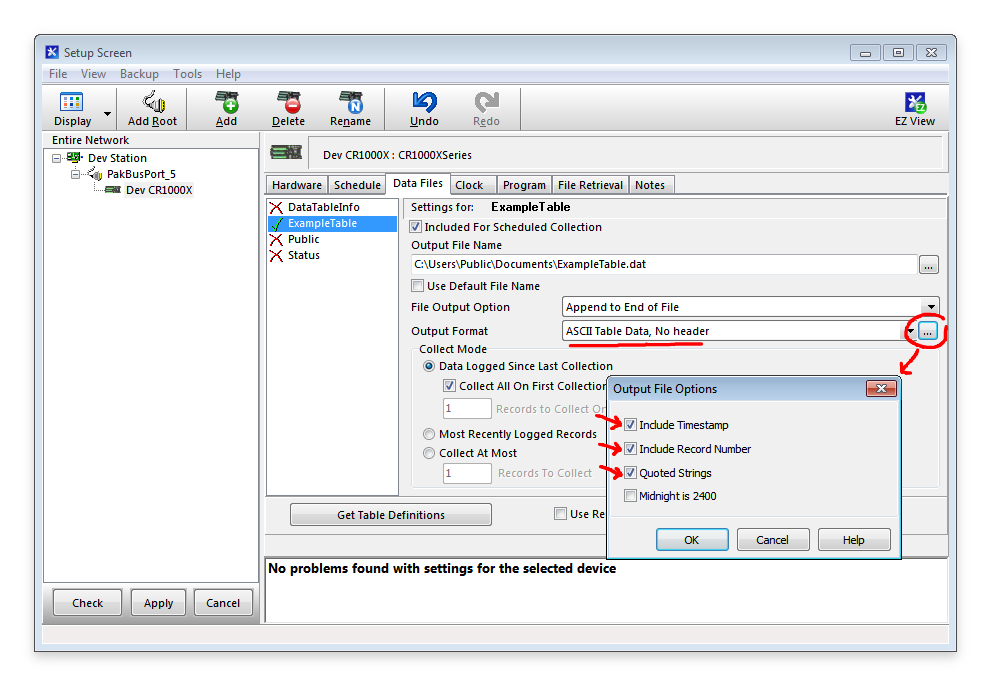

ASCII

The ASCII format only contains record data, it does not define field names.

When properly configured for use with Toxx the first values will be: timestamp string and record number. These fields should not be included when passing field names to the Toxx::load() method.

Important

When passing field names, do not include the timestamp or the record number.

They are automatically prepended. You should only pass the field names defined in your DataTable.

See Usage below for example.

Output File Options

  • Include Timestamp
  • Include Record Number
  • Quoted Strings
  • Midnight is 2400
CSIXML - This format is not recommended

Due to how XML is parsed in PHP, this format can be extremely slow and cause high memory usage when used with large datasets.

CsiXml can be used with Toxx, but it is not recommended.

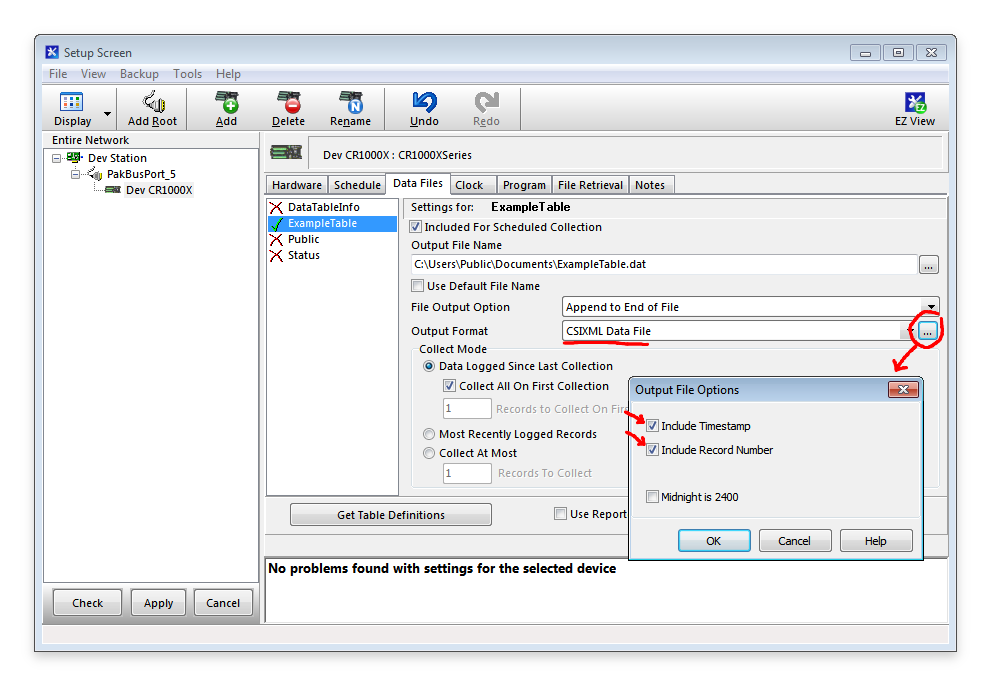

CSIXML

Output File Options

  • Include Timestamp
  • Include Record Number
  • Midnight is 2400

Basic Usage

1
2
3
4
5
6
7
<?php

use Hyyppa\Toxx\Toxx;

$dat = Toxx::load("filename.dat");

$json = $dat->first()->json();

$json =

{
    "TIMESTAMP": "2020-03-08 19:35:00",
    "RECORD": 0,
    "panel_temp": 26.86,
    "battery_voltage": 12.94,
    "battery_voltage_Min": 12.94,
    "SECONDS": 952544100
}

1
2
3
4
5
6
7
<?php

use Hyyppa\Toxx\Toxx;

$dat = Toxx::load("filename.dat");

$json = $dat->first()->json();

$json =

{
    "timestamp": "2020-03-08 19:35:00",
    "panel_temp": 26.86,
    "battery_voltage": 12.94,
    "battery_voltage_min": 12.94
}
Last update: January 6, 2021
